We can provide high temperature superconducting thin film substrate , magnetic thin films and ferroelectric thin film substrate , semiconductor crystal , optical crystal , laser crystal materials ,at the same time provide orientation and foreign universities and research institutes to provide high quality ( ultra smooth ,ultra smooth , ultra clean)

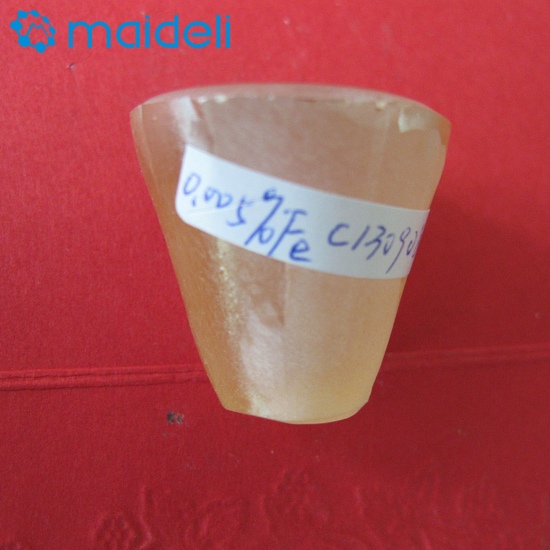

Fe doped SrTiO3 Single Crystal
Typical Physical Properties:
| Crystal Structure | Cubic a=3.905Å |
| Doping Concentration | Fe 0.05% wt |
| Fe 0.005% wt | |
| Growth Method | Verneuil |
| Density | 5.175 g/cm3 |
| Melt Point | 2080 °C |
| Hardness | 6 (Mohn) |
| Thermal Expansion | 10.4 x (10-6/°C) |
| Dielectric Constant | ～300 |
| Loss Tangent at 10 GHz | ～5 x 10-4@300K , ～3 x 10-4@77K |
| Color and Appearance | Transparent (Sometime slightly brown based on annealing condtion |
| No twins | |
| Chemical Stability | Insoluble in water |
| Orientation | <100>+/-0.5degree |
| <110>+/-0.5degree | |
| <111>+/-0.5degree |
Please send us your request with below details to " sales@mdlmaterials.com"
1. Size with tolerance (Diameter / Thickness )
2. Type
3. Orientation
4. Doping Concentration
5. Polishing Side (SSP or DSP )
6. Quantity
