SrTiO3 Monocrystal Substrate
SrTiO3 single crystal has the good lattice structure possessed by perovskite structure materials. For the epitaxial growth of HTS and most oxide films, it is an excellent substrate material and has been widely used in the research of high-temperature superconducting films. It is also widely used in special optical windows and high-quality sputtering targets.
SrTiO3 Single Crystal
Typical Physical Properties:
| Crystal Structure | Cubic a=3.905Å |
| Growth Method | Verneuil |
| Density | 5.175 g/cm3 |
| Melt Point | 2080 °C |
| Hardness | 6 (Mohn) |
| Thermal Expansion | 10.4 x (10-6/°C) |
| Dielectric Constant | ～300 |
| Loss Tangent at 10 GHz | ～5 x 10-4@300K , ～3 x 10-4@77K |
| Color and Appearance | Transparent (Sometime slightly brown based on annealing condtion |
| No twins | |
| Chemical Stability | Insoluble in water |
Dimension:
| Orientaion | <100>、<110>、<111>±0.5º |
| Size | Dia30 x 0.5mm 20 x 20 x 0.5mm 15 x 15 x 0.5mm 10 x 10 x 0.5mm 10 x 5 x 0.5mm 5 x 5 x 0.5mmmore sizes can be supplied ,please check with us |
| Surface Polishing | SSP DSP |
| Surface Roughness | Surface roughness(Ra):<=5A |

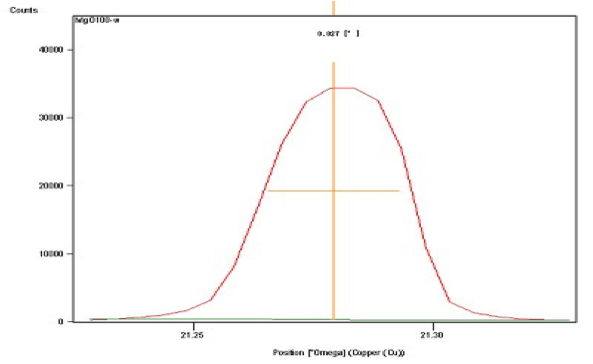

Xrd and Rocking Curve:
Orientation: <100>+/-0.5degree
Orientation: <110>+/-0.5degree
Orientation: <111>+/-0.5degree
Please send us your request with below details to " sales@mdlmaterials.com"
1. Size （Length / Width / Thickness)
2. Orientation
3. Polishing Side (SSP or DSP )
